| Material: | Low carbon steel wire |
| Feature: | Simple in structure, Easy maintenance |
| Application: | Grassland, forestry, highway |
 |

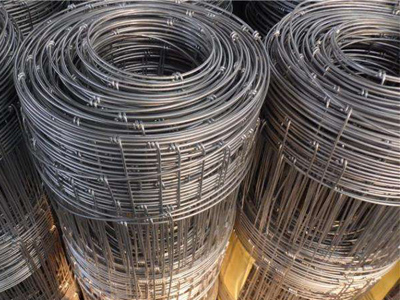

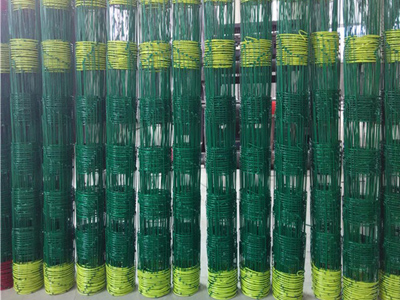

Galvanized hinge joint knot cattle fence
• Hinge joint knot cattle fence (woven wire fence) is manufactured in a wide selection of heights and styles featuring a graduated spacing.
• That starts with small openings at the bottom ,which helps prevent entry from small animals.
• The hinge-joint knot allows the fencing to give under pressure and spring back into shape.
• It ensures a solid construction over any terrain.
• Be designed using a variety of spacing configurations to accommodate deer,horses,cattle, hogs.rabbits,and other large animals.
The standard and Hot sale size of cattle wire fence:
| No | Specification | Weight Kgs/roll | Dia.of top wire / mm | Dia.of inner wire / mm | Dia of fece roll(mm) | |
| Model | Open Size | |||||
| 1 | 7/150/813/50 | 4”+4.5”+5”+4.5”+6”+7” | 19.3 | 2.5 | 2.0 | 230 |
| 2 | 8/150/902/50 | 3.5”+4”+4.5”+5”+5.5”+6”+7” | 21.6 | 2.5 | 2.0 | 230 |
| 3 | 7/150/1130/50 | 5”+5.5”+6”+7”+8”+9” | 21.8 | 2.5 | 2.0 | 230 |
| 4 | 8/150/1143/50 | 4.5”+5”+5.5”+6”+7”+8”+9” | 23.6 | 2.5 | 2.0 | 230 |
| 5 | 9/150/991/50 | 3.5”+3.5”+4”+4.5”+5”+5.5”+6”+7” | 23.9 | 2.5 | 2.0 | 230 |
| 6 | 9/150/1245/50 | 4”+4.5”+5”+5.5”+6”+7”+8”+9” | 26 | 2.5 | 2.0 | 230 |
| 6 | 10/150/1194/50 | 3.5”+3.5”+4”+4.5”+5”+5.5”+6”+7”+8” | 27.3 | 2.5 | 2.0 | 230 |
| 7 | 10/150/1134/50 | 102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 230 |
| 8 | 11/150/1422/50 | 3.5”+4”+4.5”+5”+5.5”+6”+7”+8”+9” | 30.8 | 2.5 | 2.0 | 230 |
| 9 | 12/150/1650/50 | 3.5”+35”+4”+4.5”+5”+5.5”+6”+7”+8”+9”+9 | 34.2 | 2.5 | 2.0 | 230 |
| 10 | 21/150/2400/50 | 15*100mm+2*150mm+3*200mm | 55.2 | 2.5 | 2.0 | 230 |
| Other size can be offered as requested | ||||||
