This lath is produced with ASTM A653 standard specification for steel sheet, zinc-coated (galvanized) or zinc-iron alloy coated (galvanized) by hot-dip process

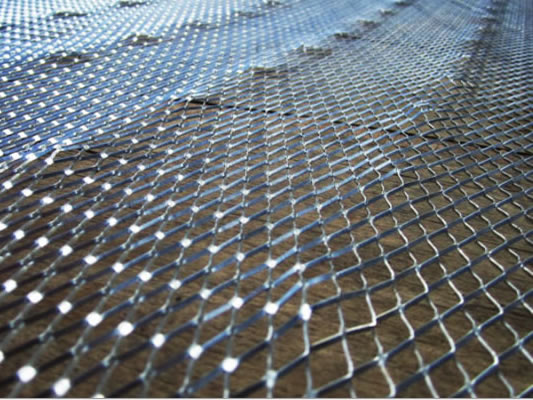

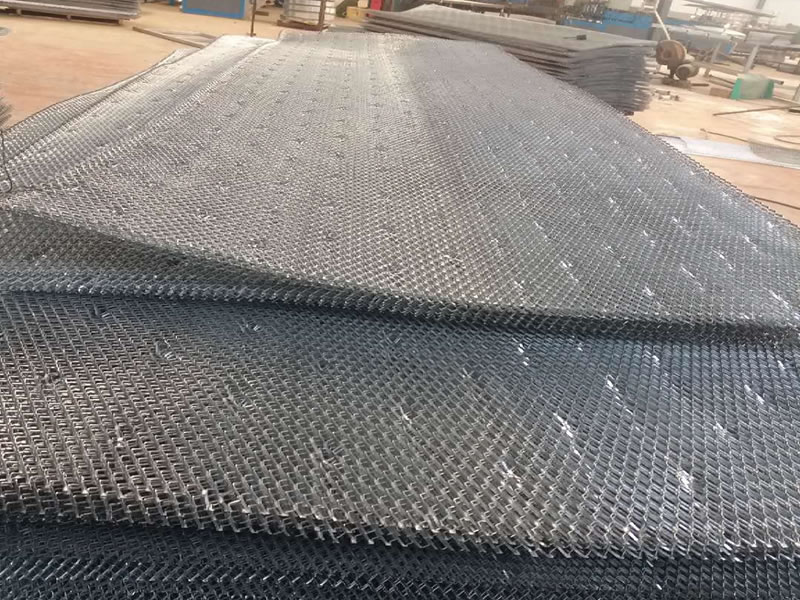

Diamond metal lath is a versatile metal lath ideal as a plaster base and Reinforcement for all type of walls, ceilings, and fireproofing of steel beams and columns.

ASTM C841 Standard specification for installation of interior lathing and furring

ASTM C847 Standard specification for Metal Lath (2.5 and 3.4 only)

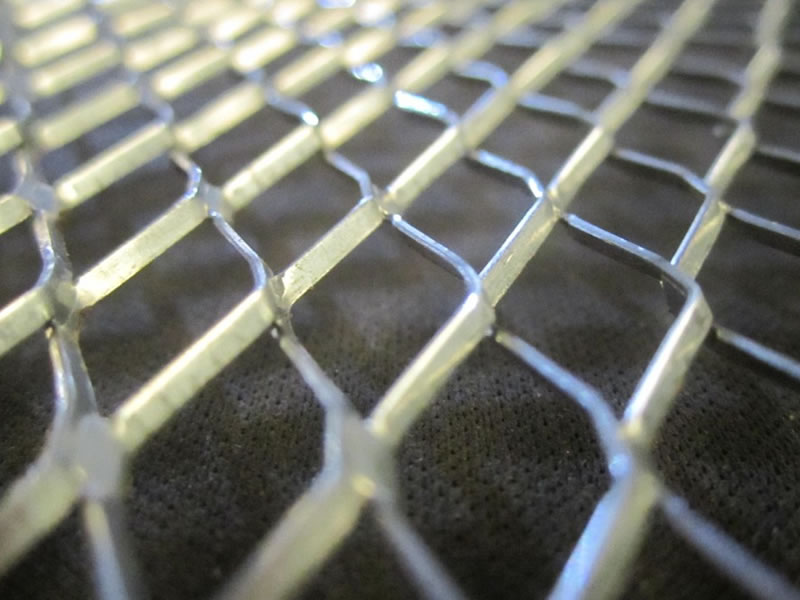

Diamond Mesh Lath is produced from thin galvanized steel strip, its LWD are lined regularly, and the mesh strand formed diamond shape with special structure, Self-furring embossed "V" groove holds the lath away from the surface to aid in the keying of stucco to the lath. A superior multi-purpose expanded steel base widely used for interior and exterior plaster and stucco reinforcement. The flat surface is easily cut and formed for use with flat or contoured surfaces. It is an excellent base for stone, spray on structural fireproofing, ornamental work, and under ceramic tile.

The diamond metal lath is used in wall, reinforcing, construction crack, Plasterer network in industry, civil construction, irrigation, municipal, transportation, road, infrastructure and other projects, mainly for residential wall plaster, decorative building, repairing and reinforcing the warehouse.

Sheet Sizes: 27" x 96" ，although 27" x 84" 27" x 97" is available in some regions

Material: G-60 Galvanized Steel

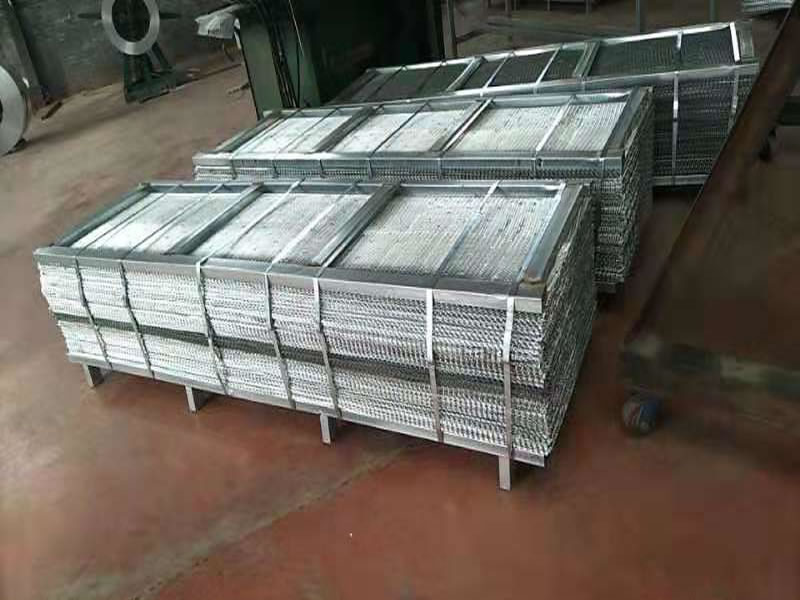

Packaged: 10 pieces per bundle, 25 bundles per skid ，50 bundles per skid。
